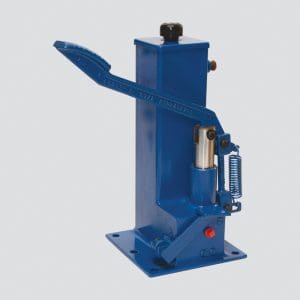

HF500 1-ton lift jacks provide fast, foot-operated lifting for loads up to 2,000 lbs. With rapid lowering and flexible stroke options, they are well suited for applications that require efficient load positioning and repeat lifting.

Key Features:

• 2,000 lb. lifting capacity
• 4.5 lbs. of pedal force per 100 lbs. of load
• Folding foot pedal
• Release pedal for rapid lowering
• Top-of-stroke relief valve to prevent over-extension

Available Configurations:

• Custom stroke lengths available from 4.5" to 40" with guided load
• Optional factory-set overload relief valve
• Standard Materials: Ground and hard chrome-plated piston (Additional Material Options Available)

HF600 2-ton lift jacks deliver up to 4,000 lbs. of lifting capacity with low pedal effort for controlled foot operation. Designed for heavier load requirements, the series also offers flexible stroke options to support a range of installation needs.

Key Features:

• 4,000 lb. lifting capacity
• 1.5 lbs. of pedal force per 100 lbs. of load
• Folding foot pedal
• Release pedal for rapid lowering
• Top-of-stroke relief valve to prevent over-extension

Available Configurations:

• Custom stroke lengths available from 4.5" to 40" with guided load
• Optional factory-set overload relief valve
• Standard Materials: Ground and hard chrome-plated piston (Additional Material Options Available)

Star tow bar jacks take the complexity out of traditional tow bar setups by combining the pump, cylinder, and reservoir into one compact unit. This integrated approach reduces external plumbing and potential leak points while making sourcing, installation, and service easier. Common applications include ground support equipment.

Key Features:

• 18" pump lever included
• Operating pressures up to 2,000 PSI
• Simple pin-to-pin mounting
• Corrosion-resistant construction
• Refillable reservoir with breather

Available Configurations:

• Custom stroke lengths
• Custom mounting configurations

A Lift Jack is a combination of an efficient pump and durable cylinder in one compact assembly to produce lifting capacity. Star produces standard as well as custom lift jacks to fit a variety of applications and lifting requirements. Our base model, the HF500 is a 1 ton jack. It is easy to operate, takes only 4 1/2 pounds of pedal force per 100 pounds of load, and it is fast acting. We offer the HF500 with an "Overload Release Valve (RV)" option. We now also offer a HF500 Stainless Steel lift jack to complement our custom nickel plated lift jack for use in the wash down applications often needed in food services and medical industries. Our new HF600 series is rated for 2 tons if you require more lifting force. For applications requiring hand operation rather than a foot pedal, we now offer the HH700 series of hand-operated lift jacks. This jack is great for use when a load being starts at waist height or above. Each of these families is available in a variety of standard stroke lengths. Some of our lift jacks are designated as stock items and are available for next day shipment. In addition to our standard lift jacks, Star produces custom lift jacks. Common options include:

• Custom stroke length
• Custom stroke length
• Special mounting holes and slots
• Compact pedals and tread plates
• Rod thread type
• Special piston materials
• Custom finishes

At Star Hydraulics, we design and build our pumps builds with heavy duty materials so that they can withstand extensive use in some of the toughest environments. Our pumps are often used in critical applications and must work when called upon. However, even with robust designs and high quality components, since the piston and piston packing materials must be in motion for a pump to work, there will be some wear and tear on some of the pump components.

Over time, it may become necessary to replace some of the piston packing materials such as springs, seals and wipers. At Star, we have designed our pumps to make it easy for our customers to replace these items while in application. We have set-up standard seal kits and repair kits and repair instructions for each or our pumps.
