AK3506, 3.5 Inch (in) Bore Size and 6.0 Inch (in) Stroke Length Tailgate Lock Pneumatic Cylinder

SKU: AK3506 Category:

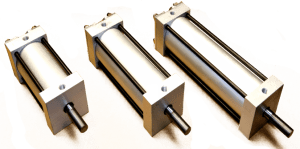

Star’s experience making tough, dependable hydraulic cylinders has helped us design and build an equally tough line of standard and custom pneumatic cylinders to meet the demanding requirements of the trucking industry.

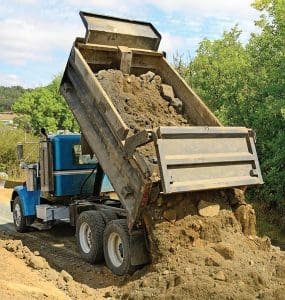

These pneumatic, mobile cylinders are typically used in tail-gate lock applications for short and long-haul trailers, dump trucks, live bottom grain haulers and gravel haulers. They are built for rugged performance and dependability to meet the demands of the open road.

Bore Size3.5 in
Stroke Length6.0 inch
Fractional Rod Diameter3/4 in
Decimal Rod Diameter0.75 in
Port Size1/4 in
Port Thread TypeNational Pipe Thread (NPT)
Thread Size5/8 in. - 18
Pin Size1/2 in
Working Pressure150 psi
Industry StandardsISO 9001 (International Organization for Standardization)
NoteCustom stroke lengths are available upon request

Additional Features

Maintenance Free, Service Free, Worry Free.

All Weather Performance

The aluminum cylinder body and endcaps provide corrosion resistance. Seals and other components are selected for the best performance over a wide temperature range including the selection of seals for low temperature operation.

Superior Reliability

“Less is best” design using minimal parts for maximum reliability.

Easy To Install

Valve, clevis and fitting kits available for fast, easy installation.

Industry Standards

ISO 9001 (International Organization for Standardization)

Additional Information

At Star, we take our ISO 9001 certification very seriously so that you can rely on consistently excellent quality. We take pride in our customer service and our ability to reduce lead-times on production orders as well as meet promised delivery dates.

Dimensional Information

Dimension A4.00in
Dimension B1.50in
Dimension C1.88in
Dimension E11.13in
Dimension F4.00in
Dimension G4.00in

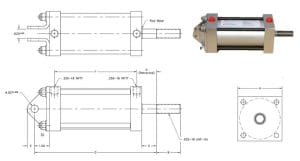

Dimensional DrawingDimensional Drawing for product
