| Mounting | Base Mounted |
| Series | FP |
| Oil Reservoir | true |
| Manual Pressure Relief Valve | Yes |
| Body Material | Steel |
| Piston | Hard Chrome Plated |
| Maximum Pressure Rating | 5000 PSI |
| Piston Diameter | 1/2 in |
| Volume per Stroke | 0.29 in3 |
| Foot Lever Load per 100 PSI | 2.3 lb |
| Net Weight w/o Oil | 22-26 lb |
| Reservoir Volume | 80 in3 |
| Operating Lever Size | 24 in |
FP1AC-80
With Oil Reservoir
With Adjustable Overload Relief Valve
With Manual Pressure Release Valve

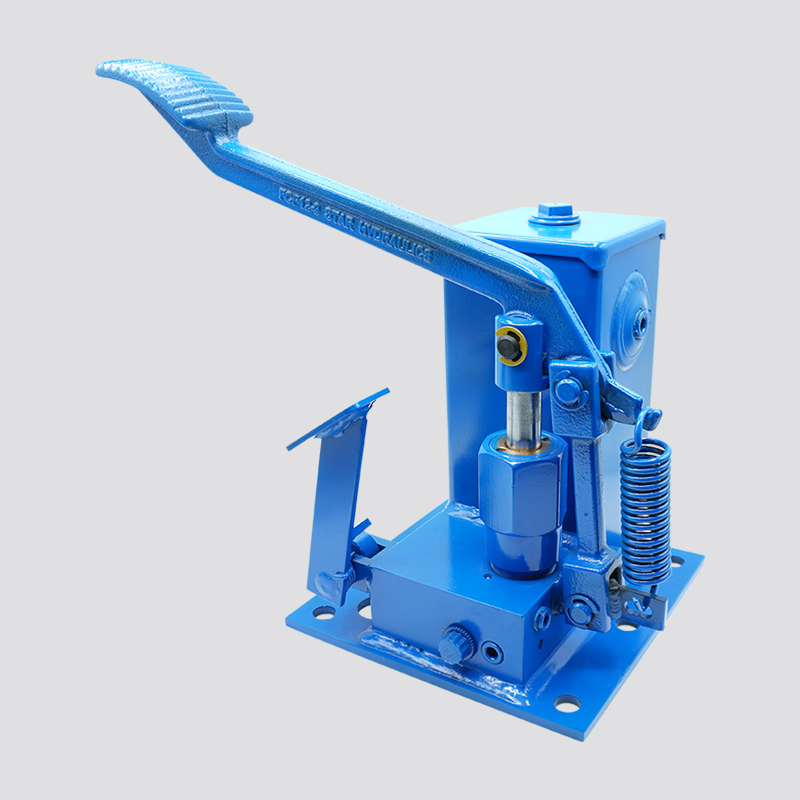

Star FP series pumps have built-in reservoirs. Foot operated FP series pumps have pedal type pressure release valves that free the operator’s hands while the pump pressure is being released.
Maximum pressure of the foot pump is 5000 PSI. The adjustable overload will be set at the maximum pressure at the factory unless a lower pressure is specified by the customer. The overload can be adjusted by the customer in the field, if required.
- Maximum pressure 5000 PSI
- All steel pump bodies
- Pistons: ground and hard chrome plated
- Reservoir breather filter
- Standard reservoir volume to 250 cubic inches-larger sizes available
- Available in stainless steel
Parts indicated (Stock) are available for shipping within 24 hours of receipt of order.
Downloads
Limited Warranty
- All Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.
Technical Data
- Light hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.
- All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
