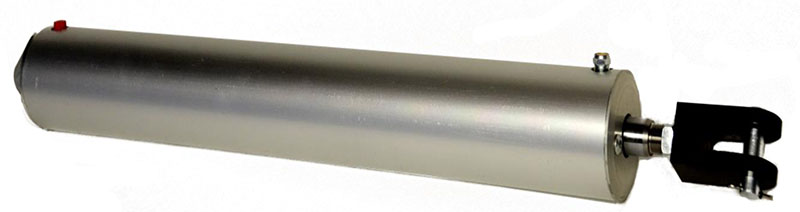

Belly-Dump Pneumatic Cylinders
Belly-Dump cylinders typically require heavy-duty pneumatic cylinders with bore sizes in the 6" to 8" range and stroke lengths between 20" and 30". Star’s expertise with these cylinder sizes comes from our experience building large bore, heavy duty cylinders over the last 40 years.
| Part Number | Port Size | Rod Diameter | Stroke Length | Working Pressure |
|---|---|---|---|---|
| AK8030R, 8.0 Inch (in) Bore Size and 30 Inch (in) Stroke Length Belly-Dump Pneumatic Cylinder | 1/2 in | 1.25 in | 30 inch | 150 psi |
| AK8026R, 8.0 Inch (in) Bore Size and 26 Inch (in) Stroke Length Belly-Dump Pneumatic Cylinder | 1/2 in | 1.25 in | 26 inch | 150 psi |
| AK6030R, 6.0 Inch (in) Bore Size and 30 Inch (in) Stroke Length Belly-Dump Pneumatic Cylinder | 1/2 in | 1.25 in | 30 inch | 150 psi |
| AK6026R, 6.0 Inch (in) Bore Size and 26 Inch (in) Stroke Length Belly-Dump Pneumatic Cylinder | 1/2 in | 1.25 in | 26 inch | 150 psi |
| AK6019R, 6.0 Inch (in) Bore Size and 19 Inch (in) Stroke Length Belly-Dump Pneumatic Cylinder | 1/2 in | 1.25 in | 19 inch | 150 psi |
