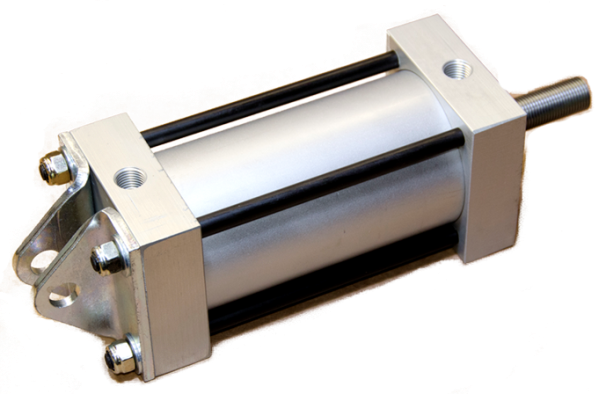

Tailgate Lock Pneumatic Cylinders
Star's experience making tough, dependable hydraulic cylinders has helped us design and build an equally tough line of standard and custom pneumatic cylinders to meet the demanding requirements of the trucking industry.
These pneumatic, mobile cylinders are typically used in tail-gate lock applications for short and long-haul trailers, dump trucks, live bottom grain haulers and gravel haulers. They are built for rugged performance and dependability to meet the demands of the open road.
| Item # | Bore Size | Port Size | Fractional Rod Diameter |
|---|---|---|---|
| AK3508, 3.5 Inch (in) Bore Size and 8.0 Inch (in) Stroke Length Tailgate Lock Pneumatic Cylinder | 3.5 in | 1/4 in | 3/4 in |
| AK3506, 3.5 Inch (in) Bore Size and 6.0 Inch (in) Stroke Length Tailgate Lock Pneumatic Cylinder | 3.5 in | 1/4 in | 3/4 in |
| AK2508, 2.5 Inch (in) Bore Size and 8.0 Inch (in) Stroke Length Tailgate Lock Pneumatic Cylinder | 2.5 in | 1/4 in | 5/8 in |
| AK2506, 2.5 Inch (in) Bore Size and 6.0 Inch (in) Stroke Length Tailgate Lock Pneumatic Cylinder | 2.5 in | 1/4 in | 5/8 in |
| AK2504, 2.5 Inch (in) Bore Size and 4.0 Inch (in) Stroke Length Tailgate Lock Pneumatic Cylinder | 2.5 in | 1/4 in | 5/8 in |
