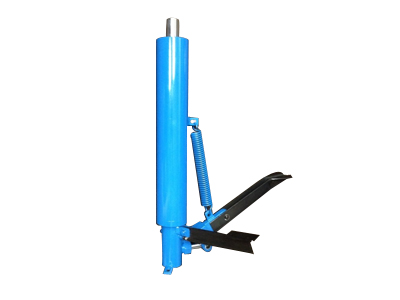

2 Ton (t) Foot - Operated Hydraulic Jacks

Features:

• Full 4000 pound lifting capacity
• Easily operated pedal type pump
• Hard chrome plated piston rod and pump piston
• Release pedal for rapid lowering
• Folding foot pedal
• Top-of-stroke relief valve to prevent over-extension
• Optional overload relief valve

Specifications:

• Maximum stroke with 4,000 lb. load with no eccentric loading
  • Cylinder and rod pinned ends - 22.5" stroke maximum
• Minimum stroke length - 4"
• Force required on pedal = 1.5 lbs. per 100 lbs. of load
• Piston rod travel per pump stroke - 3/16" stroke
• Custom stroke lengths are available

Typical Custom Modifications:

• Custom stroke length
• Foot pedal tread plate
• Rod thread type
• Paint color
• Special mounting holes and slots

Specifying Customization:
Star's customer service and engineering personnel will assist you with customization that is required. Whether we receive your drawing and specification or provide one to you, we strive to meet your special requirements as quickly and efficiently as possible.
